Switch Layer 3

Product

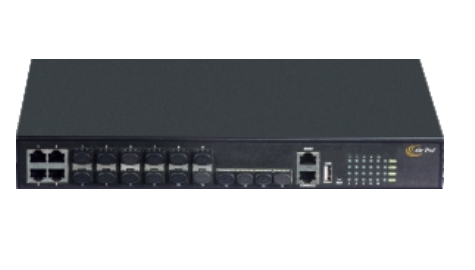

AP-SG6500E-16F-4XG-R

• 8 x 100/1000Base-X (SFP) + 4 x GE Combo (RJ45/SFP) +
4 x 10GbE (SFP+) 1 console, 1 USB, 1 RJ45 management port• AC + 48VDC power supply
• Switching capacity 112Gbps
• Forwarding rate 83Mpps
• VLAN Table 4K
• MAC Address 16K
• Static & Dynamic Routing

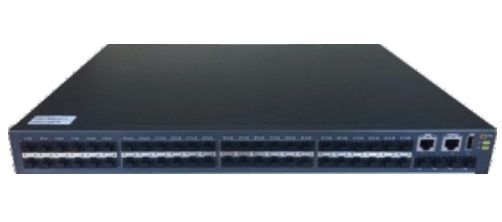

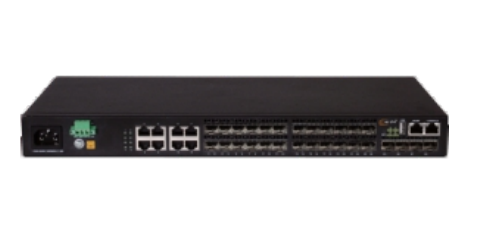

AP-SG6500E-28F-4XG-R

• 16 x 100/1000Base-X (SFP) + 8x GE Combo(RJ45/SFP) +
4 x 10GE(SFP+) 1 console, 1 USB, 1 RJ45 management port
• Rack Mount 1U
• Dual AC + 48VDC power supply
• Switching Capacity 128Gbps
• Packet Forwarding 95Mpps
• MAC Address 16K
• VLAN Table 4K

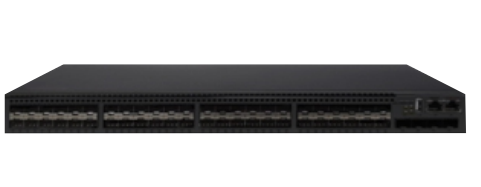

AP-SG6500E-52F-4XG-R

• 48Ports 1*G SFP with 4*10G Uplink Ports + 1 Console Port
• Rack Mount 1U
• Power Supply Dual Power AC/DC
• Switching Capacity 176Gbps
• Packet Forwarding 131Mpps
• MAC Address 16K
• Static Routing, OSPF v3,BGP4+
• VLAN Table 4K

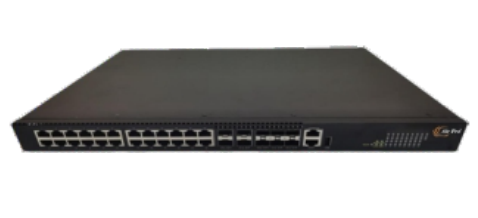

AP-SG6500E-24X-4XG

• 24 x 10/100/1000BaseT + 4 x 10GE(SFP+)
• 1 console, 1 USB, 1 reset, 1 RJ45 management port
• AC power supply
• Switching capacity 128Gbps
• Forwarding rate 95Mpps

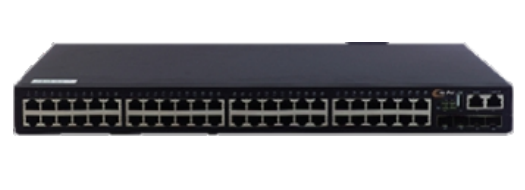

AP-SG6500E-48X-4XG

• 48 x 10/100/1000BaseT + 4 x 10GE(SFP+)
• 1 console, 1 USB, 1 reset, 1 RJ45 management port
• AC power supply
• Switching capacity 176Gbps
• Forwarding rate 131Mpps

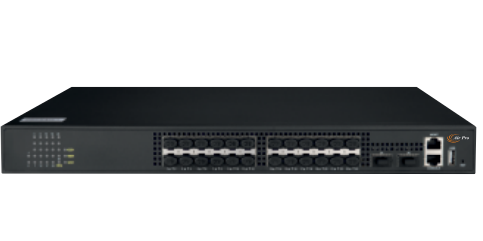

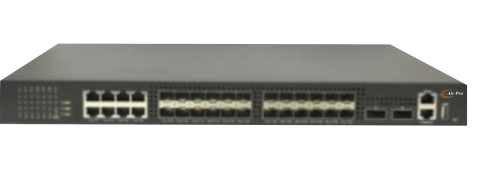

AP-SG6500-XQ-24X2Q

• 24x10GbE (SFP+) + 2x40GbE(QSFP)
• 1 console, 1 USB, 1 reset, 1 RJ45 management port
• AC + 48VDC power supply
• Switching capacity 640Gbps
• Forwarding rate 480Mpps
• MAC Address 32K
• VLAN Table 4K

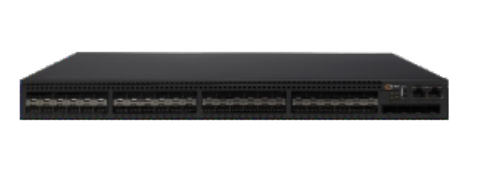

AP-SG6500-XQ-48X2Q

• 48x10GbE (SFP+) + 2x40GbE(QSFP)
• 1 console, 1 USB, 1 reset, 1 RJ45 management port
• AC + 48VDC power supply
• Switching capacity 1120Gbps
• MAC Address 32K
• VLAN Table 4K

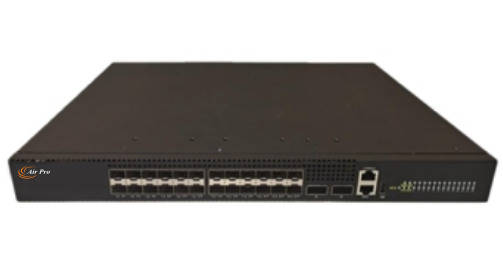

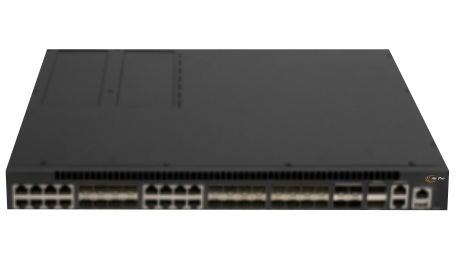

AP-SG6500-8G24S2Q

• 8 x 10/100/1000BaseT + 24 x 10GE(SFP+) + 2 x 40GE(QSFP+)
• Redundant Fixed AC+DC (48V) Power Supply
• 1 console, 1 USB, 1 RJ45 management port
• 1 Reset Button
• Forwarding performance 488Mpps
• Switching capacity 656Gbps
• MAC Address 32K

AP-SG6500E-16FX-8F-MPLS-4XG

• 16 x GbE Combo (GT/SFP) + 8 x GbE (SFP) + 4 x 10GbE (SFP+) + 2 x Stacking port
• Redundant and modular AC+AC Power Supply
• 1 console, 1 USB, 1 RJ45 management port
• Forwarding performance 155Mpps
• Switching capacity 208Gb
• MAC Address 32K
• Routing Table 16K
• L3 Interface Max 1Kps
• Supports MPLS L3 VPN/MPLS L2 VPN(VPLS)

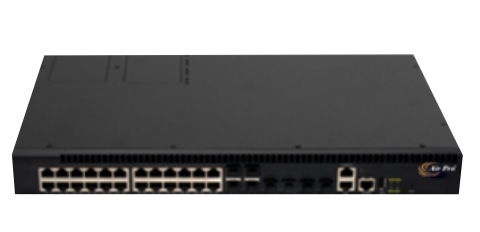

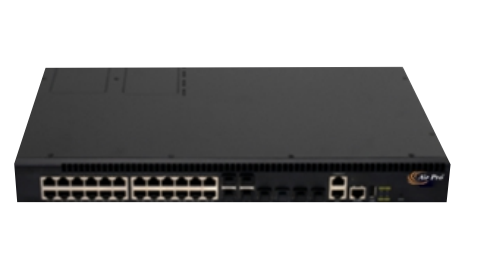

AP-SG6500E-20X4FX-4XG-R2

• 20 x 10/100/1000BaseT + 4 x GE Combo (GT/SFP) +
4 x 10GE(SFP+)
• Fixed Redundant AC+AC Power supply
• 1 console, 1 USB, 1 RJ45 management port
• 1 Reset Button
• Forwarding performance 95Mpps
• Switching capacity 128Gbps

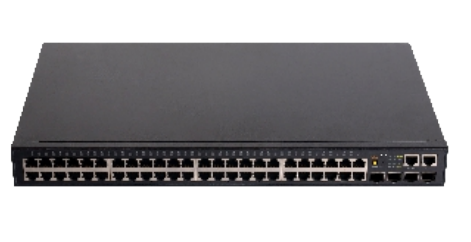

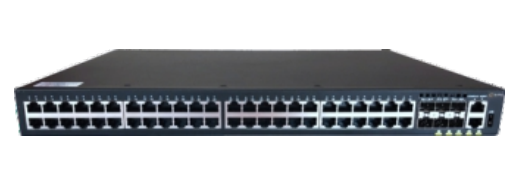

AP-SG6500E-48X-4XG-R2

• 48 x 10/100/1000BaseT + 4 x 10GE(SFP+)
• Fixed Redundant AC+AC Power supply
• 1 console, 1 USB, 1 RJ45 management port
• 1 Reset Button
• Forwarding performance 131Mpps
• Switching capacity 176Gbps

AP-SG6200-24XF2Q

• 24x10GE(SFP+) + 2x100GE(QSFP28)
• 1 modular AC+1 optional modular AC power supply
• 1 console, 1 USB, 1 RJ45 management port
• 1 Reset Button
• Forwarding performance 488Mpps
• Switching capacity 656Gbps
• Auto MDI/MDIX

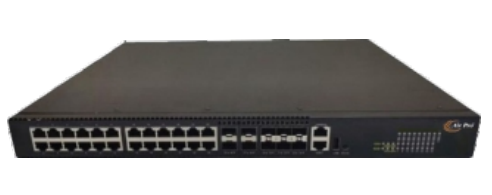

AP-SG6200-24X4XF-6XP

• 24x1GE + 4x1GE(SFP) + 6x10G(SFP+)
• 1 Modular AC+1 optional modular AC power supply
• 1 Console, 1 USB, 1 RJ45 management port
• 1 Reset Button
• Forwarding performance 131Mpps
• Switching capacity 176Gbps
• Auto MDI/MDIX

AP-SG6200-24X4XF-P-6XP

• 24x1GE(PoE) + 4x1GE(SFP) + 6x10G(SFP+)
• 1 Modular AC+1 optional modular AC power supply
• 1 Console, 1 USB, 1 RJ45 management port
• 1 Reset Button
• Forwarding performance 131Mpps
• Switching capacity 176Gbps
• PoE+, up to 750W with dual PSU or 375W with 1 PSU
• Auto MDI/MDIX

AP-SG6200-48FX-6XP

• 48x1GE(SFP) + 6x10G(SFP+)
• 1 Modular AC+1 optional modular AC power supply
• 1 Console, 1 USB, 1 RJ45 management port
• 1 Reset Button
• Forwarding performance 161Mpps
• Switching capacity 216Gbps
• Auto MDI/MDIX
• Auto MDI/MDIX

AP-SG6200-48X-6XP

• 48x1GE + 6x10G(SFP+)
• Dual Fixed AC power supply
• 1 Console, 1 USB, 1 RJ45 management port
• 1 Reset Button
• Forwarding performance 161Mpps
• Switching capacity 216Gbps
• Auto MDI/MDIX
