Mô tả
Mô tả kỹ thuật

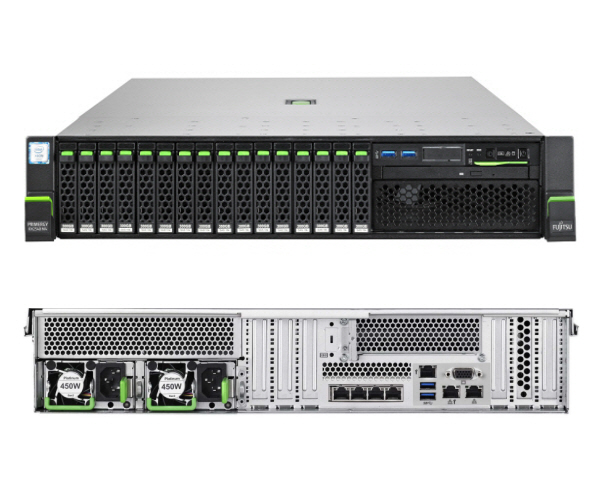

- 2U dual-socket rack server for high usability, scalability and cost-efficiency
- Ideal for running enterprise applications, collaboration workloads as well as traditional databases
- Modular design offers excellent expandability of up to 28 disk drives
- Up to 7.5TB memory for highest performance demands
- GPGPU support for VDI and graphic-intensive computing
| Chipset | Intel® C624 |
| Mainboard type | D3384-B |
| Product Type | Dual Socket Rack Server |
| Processor | Intel® Xeon® Bronze 3xxx processor, Intel® Xeon® Silver 4xxx processor, Intel® Xeon® Gold 5xxx processor, Intel®Xeon® Gold 6xxx processor, Intel® Xeon® Platinum 8xxx processor 1 – 2 |
| Memory | 8 GB – 7.5 TB, DIMM (DDR4 / DDR-T for non-volatile memory modules) |
| Memory slots | 24 (12 DIMMs per CPU, 6 channels with 2 slots per channel) |
| Memory protection | Advanced ECC, Memory Scrubbing, SDDC, Rank sparing memory support, Memory Mirroring support |
| Drives (optional) | DVD supermulti, ultraslim, SATA I RDX Drive, 100 MB/s, 320 GB, 500 GB, 1 TB, 2 TB, USB 3.0 LTO6HH Ultrium, 160 MB/s, 2,500 GB, SAS 6Gb/s LTO7HH Ultrium, 300 MB/s, 2,500 GB, SAS 6Gb/s LTO7HH Ultrium, 300 MB/s, SAS 6Gb/s |
| PCI-Express 3.0 x8 | 3 x Low profile (2nd processor required for slot 4) |
| PCI-Express 3.0 x16 | 3 x Low profile (2nd processor required for slot 5 and 6) |
| Accessible drive bays | 1 x 5.25/0.4-inch for CD-RW/DVD |
| Optional accessible drives | ODD 5.25″ possible ODD 5.25″ NOT possible All possible options described in relevant system configurator. |
| Storage drive bays | 3.5-inch or 2.5-inch hot-plug SAS/SATA 4 x 3.5-inch hot-plug SAS/SATA 12 x 3.5-inch hot-plug SAS/SATA 16 x 2.5-inch hot-plug SAS/SATA 8 x 2.5-inch hot-plug SAS/SATA 24 x 2.5-inch hot-plug SAS/SATA |
| LAN Controller | 2 x 1 Gbit/s onboard, Optional DynamicLoM OCP adaptors:, 4 x 1 Gbit/s Ethernet (RJ45), 2 x 10 Gbit/s Ethernet (RJ45), 2 x 10 Gbit/s SFP+, 4 x 10 Gbit/s SFP+ |
| Remote Management | Integrated Remote Management Controller (iRMC S5, 512 MB attached memory incl. graphics controller), IPMI 2.0 compatible |
| USB ports | 5 x USB 3.0 (2x front, 2x rear, 1x internal) – for base units with max. drives count: 1x USB 2.0 front only |
| Graphics | 2 x VGA (thereof 1x front optional) |
| Management LAN (RJ45) | 1 x dedicated management LAN port for iRMC S5 (10/100/1000 Mbit/s), Management LAN traffic can be switched to shared onboard LAN controller port, speed and connector is related to installed interface card. |
| Trusted Platform Module (TPM) | Infineon / TPM 1.2 or TPM 2.0 module; TCG compliant (option) |
| Power supply configuration | 1 x hot-plug power supply or 2x hot-plug power supply for redundancy |
| Active power (max. configuration) | 715 W |
| Weight | up to 25 kg |
| Rack (W x D x H) | 482.4 mm (Bezel) / 445 mm (Body) x 770 x 86.6 mm |
| Mounting Depth Rack | 740 mm |
| DC Infrastructure Management | Infrastructure Manager (ISM) Essential Advanced |
| Server Management | Infrastructure Manager (ISM) Essential Advanced, ServerView Suite |
| Operating system | http://docs.ts.fujitsu.com/dl.aspx?id=d4ebd846-aa0c-478b-8f58-4cfbf3230473 |
| Warranty period | 3 years |
| Warranty type | Onsite warranty |
| Service Lifecycle | 5 years after end of product life |
| Service Weblink | http://www.fujitsu.com/emeia/products/product-support-services/ |
| Support Pack Options | Globally available in major business areas: 9×5, Next Business Day Onsite Response Time 9×5, 4h Onsite Response Time (depending on country) 24×7, 4h Onsite Response Time (depending on country) |
